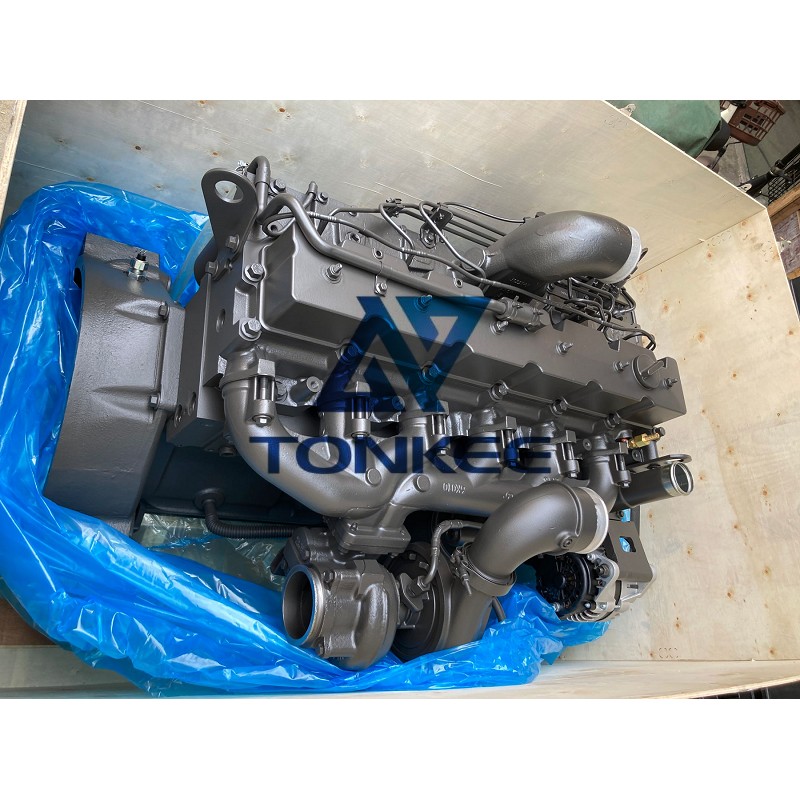

OEM 13N9-00010 11N9-00010 HM8.3 6CT8.3 6C-8.3 diesel engine assy 250HP 186KW 2200RPM R300LC-9S R320LC7 R330LC9S hydraulic excavator

Configuration: Inline 6-cylinder
Displacement: 8.3 liters (505 cubic inches)
Bore: 4.49 inches (114 mm)
Stroke: 5.32 inches (135 mm)
Compression Ratio: 16.5:1
Aspiration: Turbocharged and aftercooled
Fuel System: Mechanical or electronic fuel injection system
Power Output:
HM8.3: 215-275 horsepower (160-205 kilowatts) at 2100 RPM
6CT8.3: 210-350 horsepower (156-261 kilowatts) at 2100 RPM
6C-8.3: 180-300 horsepower (134-224 kilowatts) at 2200 RPM
Torque Output:
HM8.3: 700-800 lb-ft (949-1085 Nm) at 1400-1600 RPM
6CT8.3: 710-1150 lb-ft (964-1559 Nm) at 1300-1700 RPM
6C-8.3: 570-970 lb-ft (773-1315 Nm) at 1500 RPM
Cooling System Capacity: 26-27 liters (6.9-7.1 gallons)
Dry Weight: 1128-1235 lbs (512-560 kg)
Emissions Compliance: EPA Tier 1-3, EU Stage I-II, and IMO Tier II
